Products discription

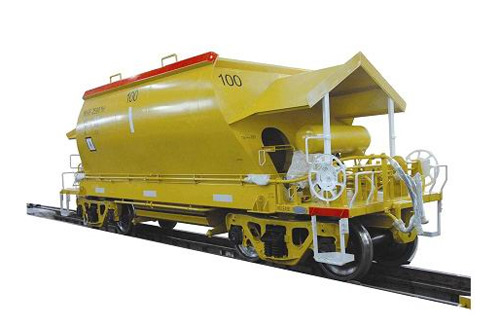

Ore Hopper Wagon for Australia

Detailed products discription

This wagon is composed of car body, brake system, switching mechanism, switching control mechanism, coupler traction buffered devices, bogie, paints and marks. This wagon can be opened from the bottom which is specially designed for the customer to transport ironstone. This wagon is coupled in pairs and drive in narrow gauge, discharging goods from the bottom. It has the characteristics of large loading capacity, light tare weight and fast discharging speed, with tare weight of about 17 tons, being popular in the small and medium -sized mining companies without dumper devices. The bogie adopts low track force bogie with 16 tons axle, unit brake beam and flexible diagonal connecting drive, which can lock automatically. When the bottom discharging door is closed, the door can not be open automatically in common application and operation. When the discharging door is open, the goods are discharged at the center of the rails. Usually, there are no goods left inside the hopper after dischar
